Darsonval CORONA-S + Ultraton Professional

The device structurally consists of three parts: a control unit and two transformer housings. The control unit has two independent channels, with a control board and a generator board.

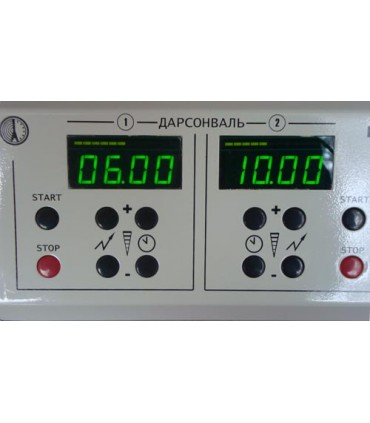

The front panel of the control unit contains:

• green backlit switch to turn on the power;
• buttons for setting the "procedure duration (10-20 minutes)";
• buttons for setting the "procedure intensity" (darsonvalization mode from 8 to 25 kV and ultratonic mode from 0.5 to 3.5 kV);
• indicators of "duration of the procedure";
• indicators of "procedure intensity";
• buttons for starting the procedure;
• procedure shutdown buttons.

Using the apparatus.

Physiotherapy using the device can be successfully applied in the following cases.

IN DERMATOLOGY

• for the treatment of diathesis, eczema, neurodermatitis, acne.
• Boils, localized pruritus, granuloma annulus, for removing warts, treating postoperative scars and
• damage to the skin.

IN DENTISTRY

• for the treatment of inflammatory diseases of the maxillofacial region:
• with periostitis, alveolitis, abscess and phlegmon in the stage of resolution,
• postoperative infiltrates, trismus, arthritis of the temporomandibular joint, pingitis, periodontal disease, etc.

IN SURGERY

• for the treatment of various local purulent - inflammatory processes, infected wounds, trophic ulcers, infiltrates, lymphodenitis, as well as in the initial stages of obliterating vascular diseases of the extremities.

IN NEUROPATOLOGY

• for the treatment of neuralgia, neuritis and polyneuritis, with
• neuralgic manifestations of spinal osteochondrosis.

IN OTOLARYNGOLOGY AND COLD DISEASES

• for the treatment of sinusitis, runny nose, flu, sore throat, rhinitis,
• laryngotracheitis, etc.

IN REFLEXOTHERAPY

• the device can be used by reflexology specialists for the treatment of internal diseases by influencing acupuncture points and Zakharyin-Ged zones. The operating mode provides for the use of maximum power through point touches in reflex zones to obtain maximum heat generation.

Basic technical data.

The device provides at the output an electrical signal in the form of a sequence of pulses with the following parameters:

Darsonvalization mode

• pulse repetition rate (100 ± 10) Hz;
• pulse filling frequency (110 ± 50) kHz;
• - the amplitude value of the output voltage is discretely regulated from the minimum value (no more than 8 kV) to the maximum (from 16 to 25 kV).

Ultra tone mode:

• sinusoidal output voltage frequency 22 kHz
• effective value of the maximum output voltage from 1 to 3.5 kV

The device operates from an alternating current with a frequency of (50 ± 0.5) Hz and a voltage of (220 ± 22) V.

The time for establishing the operating mode from the moment of switching on does not exceed 30 s.

The root-mean-square value of the current consumed by the device from the network does not exceed 1.0 A.

The inclusion of the device in the network is accompanied by light indication.

The device provides continuous operation for no more than 8 hours, followed by a break of no more than 30 minutes in intermittent mode: operating time no more than 20 minutes, pause time no less than 10 minutes.

The mass of the apparatus is no more than 2.10 kg including electrodes.

Overall dimensions of the device no more:

• control unit housing 341 × 190 × 105 mm;
• transformer block body 175 × 50 × 50 mm.
• housing of the ultratonic transformer block 230 x Ø 52 mm.

Mean time between failures is not less than 2000 hours.

Includes a set of 12 electrodes:

• cavity electrode with current lead - 1pc
• small mushroom electrode with current lead - 1pc
• comb electrode with current lead - 2 pcs.
• ear electrode with current lead - 1pc
• gingival electrode with current lead - 1pc
• vaginal electrode with current lead - 1pc
• wart electrode with current lead - 1pc
• rectal drainage electrode - 1pc
• mushroom-shaped electrode with current lead - 2 pcs
• nasal electrode with current lead - 1pc
